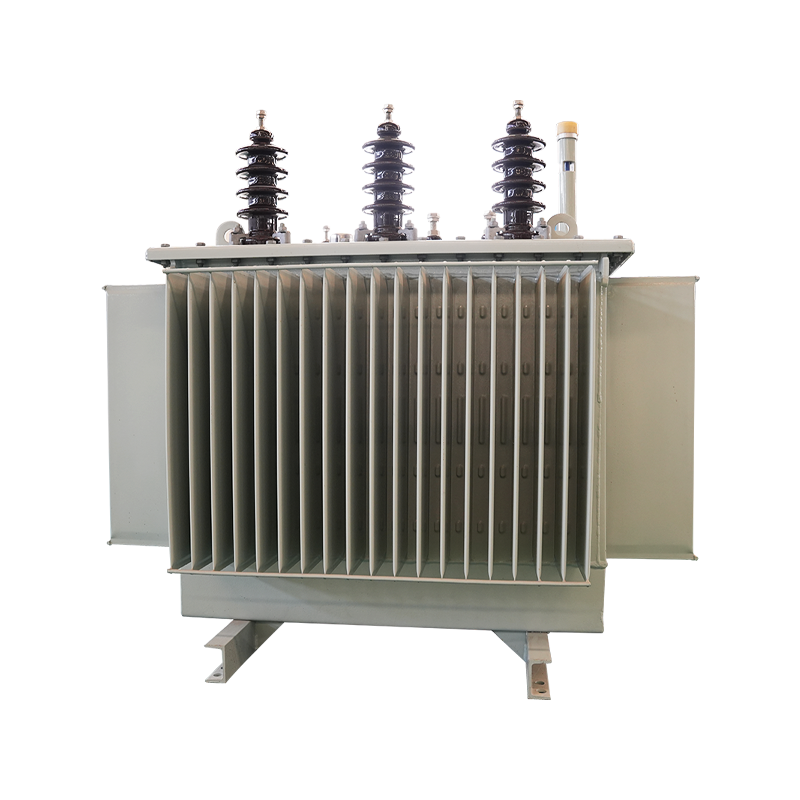

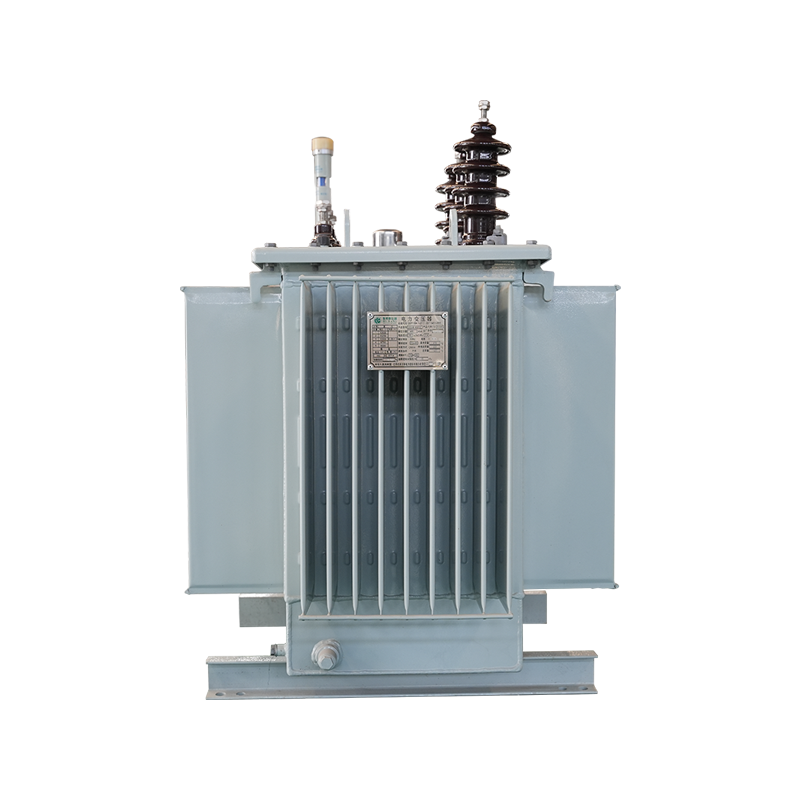

S22-M Type Oil Immersed Transformer

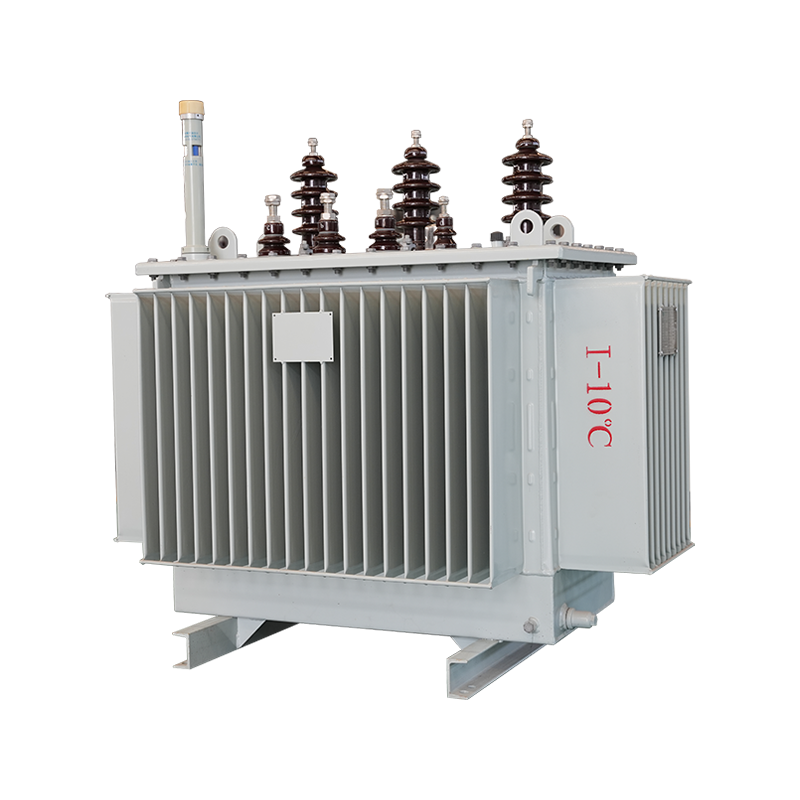

S22-M Type Oil Immersed Transformer

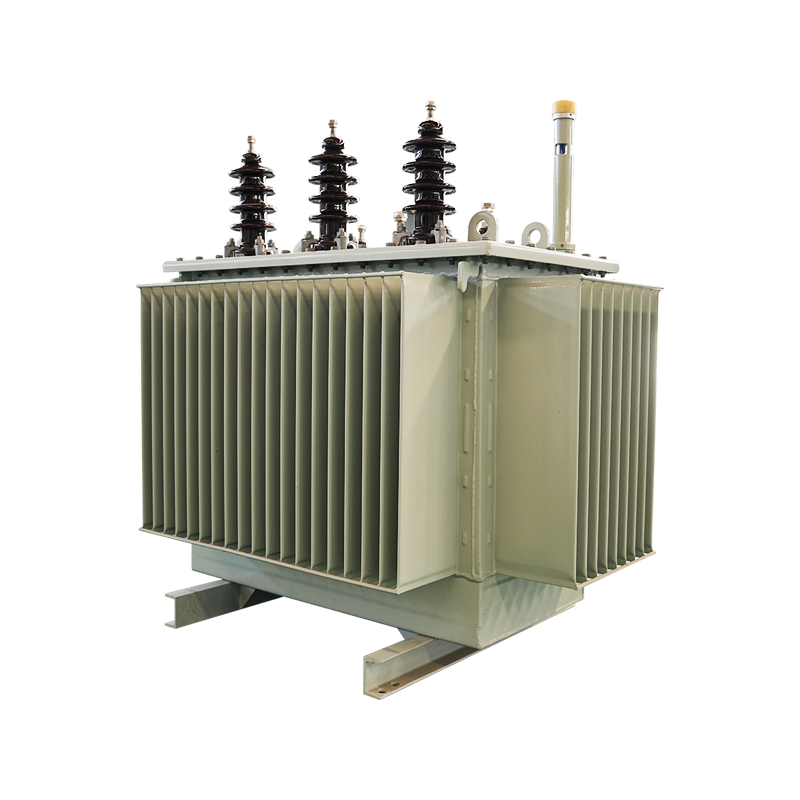

S22-M Type Oil Immersed Transformer

Product Overview: The S22-M iron core is made of high-quality cold-rolled silicon steel sheet, the domestic advanced cross shear line, small shear burr, and high stacking accuracy; At the same time, the process of the full oblique joint, no punching and no stacking iron yoke is adopted, which effectively reduces the no-load loss, no-load current and noise of the transformer. The transformer coil uses high-purity oxygen-free copper produced by suppliers with a strict quality assurance system, which effectively reduces copper consumption. The edge of the pad is chamfered, the force is uniform when pressed, and the reliability is increased. The positioning structure is reliable, and the body can withstand the impact test under various transportation conditions without displacement. In the operation of a transformer with a corrugated oil tank, the thermal expansion and cold contraction of transformer oil are adjusted by the elasticity of the corrugated sheet, and it is no longer connected to the air, which completely solves the problem that the aging of oil affects the service life of the product, and occupies a small area, beautiful appearance, and reduces maintenance. According to user needs can be equipped with a gas relay, three-in-one protection device, oil pressure quick relay, and other accessories. Product characteristics:  It has three anti-moisture, anti-mold, and anti-salt spray performances.  With three protection (temperature, gas, pressure) functions.  Reliable operation. Easy maintenance.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Parameter
  • Contact Us

  • Type

    Rated voltage combination

    Connection symbol

    No-load Current（%）

    No-load Loss （W）

    Load Loss（W）

    Impedance voltage（%）

    H.V（KV）

    Tapping range of HV（%）

    L.V（KV）

    S22-M-30



    ±2×2.5

    0.4



    0. 80

    0.065

    0.455/0.430

    4

    S22-M-50





    0. 75

    0.08

    0.655/0.625

    S22-M-63





    0. 75

    0.09

    0.785/0.745

    S22-M-80





    0. 70

    0.105

    0.945/0.900

    S22-M-100





    0. 65

    0.12

    1.140/1.080

    S22-M-125





    0. 65

    0.135

    1.360/1.295

    S22-M-160





    0. 60

    0.16

    1.665/1.585

    S22-M-200

    6



    0. 50

    0.19

    1.970/1.870

    S22-M-250

    6.3



    0. 50

    0.23

    2.300/2.195

    S22-M-315

    10

    Dyn11

    0. 45

    0.27

    2.760/2.630

    S22-M-400

    10.5

    Yyn0

    0. 45

    0.33

    3.250/3.095

    S22-M-500

    11



    0. 40

    0.385

    3.900/3.710

    S22-M-630





    0. 40

    0.46

    4.460

    4.5

    S22-M-800





    0. 35

    0.56

    5.400

    S22-M-1000





    0. 35

    0.665

    7.415

    S22-M-1250





    0. 30

    0.78

    8.640

    S22-M-1600





    0. 30

    0.94

    10.440

    S22-M-2000





    0. 25

    1.085

    13.180

    5

    S22-M-2500





    0. 25
